lme4 'Model failed to converge', 5 Fixes That Actually Work (in Order)

Model failed to converge in lme4 means the optimiser stopped at a point where its gradient, the slope of the log-likelihood, is still larger than the tolerance it expects. The fit is returned, but its coefficients may be unreliable. Work through the five fixes below in order and stop as soon as the warning clears.

Why does lme4 say the model failed to converge?

The warning is a gradient-tolerance check, not a crash. lme4 compares the final gradient of the log-likelihood to a tolerance (default 0.002) and complains when the gradient is larger. The most common cause is a predictor sitting on a scale that dwarfs the others: the optimiser's step sizes stop matching the curvature it is trying to measure, and the gradient never drops into the accept region. Reproduce that below and watch the warning vanish after one scale() call.

RReproduce the convergence warning

library(lme4) # Simulate 200 rows in 20 groups, with one badly scaled predictor set.seed(42) n <- 200 df1 <- data.frame( group = factor(rep(1:20, each = 10)), x_raw = rnorm(n, mean = 1e5, sd = 5e4) ) df1$y <- 2e-5 * df1$x_raw + rep(rnorm(20, sd = 0.8), each = 10) + rnorm(n, sd = 0.5) # Raw predictor triggers the warning m1 <- lmer(y ~ x_raw + (1 | group), data = df1) #> Warning message: #> In checkConv(attr(opt, "derivs"), opt$par, ctrl = control$checkConv, : #> Model failed to converge with max|grad| = 0.00298 (tol = 0.002, component 1) # Rescale the predictor and refit df1$x <- as.numeric(scale(df1$x_raw)) m2 <- lmer(y ~ x + (1 | group), data = df1) # (no warning) # Compare the final gradients, lower is better max(abs(m1@optinfo$derivs$gradient)) #> [1] 0.002982 max(abs(m2@optinfo$derivs$gradient)) #> [1] 4.17e-08

The gradient dropped from roughly 0.003 to effectively zero. Same data, same random-effect structure, same model, the only change was one scale() call. When predictors live on different numerical orders of magnitude, the optimiser cannot take steps that are simultaneously large enough to move the intercept and small enough to resolve the slope, so it stops with a gradient still above tolerance. Rescaling aligns the step sizes with the curvature the optimiser needs to measure.

Key Insight

The convergence warning is a gradient check, not an error. lme4 compares the final gradient to a tolerance (default 0.002) and flags anything above it. Your job is to move the gradient clearly into the accept region, not to silence the check.

Try it: Refit m1 but pass scale(x_raw) directly inside the formula and store the final gradient in ex_grad.

RExercise: refit with scale()

# Try it: refit with scale() inside the formula ex_m <- lmer(y ~ scale(x_raw) + (1 | group), data = df1) ex_grad <- # your code here ex_grad #> Expected: a number around 4e-8, well under 0.002

Click to reveal solution

RScale-refit solution

ex_m <- lmer(y ~ scale(x_raw) + (1 | group), data = df1) ex_grad <- max(abs(ex_m@optinfo$derivs$gradient)) ex_grad #> [1] 4.17e-08

Explanation: scale() inside the formula produces the same rescaled predictor as creating df1$x in advance. The gradient check is now comfortably below tolerance.

Fix 1: How should you rescale predictors (and why it works)?

scale() centers a numeric vector at zero and divides it by its standard deviation, putting every predictor on the same unit, "one standard deviation". That matters in mixed models because the random-effect variance lives in the same space as the fixed effects; when one predictor is a million times larger than another, the variance components become numerically incomparable to the coefficients. Rescaling is cheap, interpretable, and almost always the right first move.

Below, three numeric predictors on wildly different scales are normalised in one mutate(across()) call, and the scaled fit converges cleanly.

RSimulate predictors on different scales

library(dplyr) set.seed(11) n <- 300 df2 <- data.frame( group = factor(rep(1:30, each = 10)), age_years = rnorm(n, 40, 10), # tens income_usd = rnorm(n, 60000, 15000), # tens of thousands bmi_unit = rnorm(n, 25, 3) # tens ) df2$y <- 0.02 * df2$age_years + 5e-6 * df2$income_usd + 0.05 * df2$bmi_unit + rep(rnorm(30, sd = 0.4), each = 10) + rnorm(n, sd = 0.3) # Scale every numeric column in one shot df2_scaled <- df2 |> mutate(across(where(is.numeric), ~ as.numeric(scale(.)))) m_scaled <- lmer(y ~ age_years + income_usd + bmi_unit + (1 | group), data = df2_scaled) max(abs(m_scaled@optinfo$derivs$gradient)) #> [1] 2.1e-07 fixef(m_scaled) #> (Intercept) age_years income_usd bmi_unit #> 0.0012 0.3421 0.2895 0.1974

Three scaled predictors, one random intercept, gradient at 2e-7, well inside the accept region. The fixed effects are now on "per-SD" units, which is actually easier to interpret than raw dollars versus years. The random-intercept variance you see in VarCorr() sits on the same residual scale as before because the outcome was not rescaled.

Tip

Keep the centering and scaling attributes if you need to back-transform. scale() returns a matrix with "scaled:center" and "scaled:scale" attributes. Save them before the as.numeric() wrap so you can undo the transformation when you report coefficients.

Try it: Scale only the numeric columns of df2 (not group) and confirm the result has the same column names as df2 by assigning it to ex_df_scaled.

RExercise: scale all numeric columns

# Try it: scale numeric columns of df2 ex_df_scaled <- # your code here names(ex_df_scaled) #> Expected: "group" "age_years" "income_usd" "bmi_unit" "y"

Click to reveal solution

RScale-all-columns solution

ex_df_scaled <- df2 |> mutate(across(where(is.numeric), ~ as.numeric(scale(.)))) names(ex_df_scaled) #> [1] "group" "age_years" "income_usd" "bmi_unit" "y"

Explanation: across(where(is.numeric), ...) targets every numeric column and leaves group (a factor) untouched.

Fix 2: When should you simplify the random-effects structure?

Barr et al. (2013) famously recommended "keep it maximal", a random slope for every within-subject factor. Matuschek et al. (2017) then showed that on real-world sample sizes this often overparameterises the model and causes convergence failures for variance components that carry no information. The honest fix is to start with random intercepts only, add correlated slopes only if the data supports them, and drop correlations with || before dropping the slopes themselves.

Here we simulate a crossed design (subjects × items) and watch a maximal model fail, then a simpler model converge.

RMaximal model fails to converge

set.seed(7) n_subj <- 30; n_item <- 20 df3 <- expand.grid(subject = factor(1:n_subj), item = factor(1:n_item)) df3$cond <- rep(c(-0.5, 0.5), length.out = nrow(df3)) df3$y <- 0.3 * df3$cond + rep(rnorm(n_subj, sd = 0.6), times = n_item) + rep(rnorm(n_item, sd = 0.4), each = n_subj) + rnorm(nrow(df3), sd = 0.7) # Maximal model, fails to converge m_max <- lmer(y ~ cond + (1 + cond | subject) + (1 + cond | item), data = df3) #> Warning: Model failed to converge with max|grad| = 0.0087 (tol = 0.002, ...) # Simpler model, random intercepts only m_simple <- lmer(y ~ cond + (1 | subject) + (1 | item), data = df3) max(abs(m_simple@optinfo$derivs$gradient)) #> [1] 1.3e-09 anova(m_simple, m_max) #> npar AIC BIC logLik deviance Chisq Df Pr(>Chisq) #> m_simple 5 1820 1842 -905 1810 #> m_max 9 1826 1866 -904 1808 2.14 4 0.71

The maximal model fails and the simpler model lands at a gradient of 1e-9. The anova() comparison shows a chi-square of 2.14 on 4 extra degrees of freedom (p = 0.71), so the random slopes contributed effectively zero explanatory power. Removing them didn't cost the model anything, it bought identifiability back.

Warning

Don't reflexively drop every random slope you theoretically need. Try the uncorrelated form (1 + cond || subject) first, it removes the correlation parameters, which are usually the first thing to become unidentifiable, while keeping the slope itself. Drop the slope only if || also fails.

Try it: Refit m_max but with uncorrelated random effects on subject only (keep item maximal). Save to ex_m_uncor.

RExercise: uncorrelated random slopes

# Try it: uncorrelated random slopes on subject ex_m_uncor <- # your code here max(abs(ex_m_uncor@optinfo$derivs$gradient)) #> Expected: a gradient much closer to zero than m_max

Click to reveal solution

RUncorrelated-slopes solution

ex_m_uncor <- lmer(y ~ cond + (1 + cond || subject) + (1 + cond | item), data = df3) max(abs(ex_m_uncor@optinfo$derivs$gradient)) #> [1] 0.00018

Explanation: The || operator drops the correlation between intercept and slope, which is often the first parameter to become non-identifiable. That one change is frequently enough to converge.

Fix 3: How do you switch or combine optimisers with allFit()?

lme4 ships several optimisers (bobyqa, Nelder_Mead, nlminbwrap, and two nloptwrap variants). Each takes a different path through the likelihood surface, so one may get stuck where another does not. allFit() refits the same model with every optimiser in one call and lets you compare final gradients and estimates. When every optimiser lands on the same coefficients to four decimal places, the warning is cosmetic, you can pick the one with the smallest gradient and move on.

RRefit with every available optimiser

# Refit the maximal model with every available optimiser m_all <- allFit(m_max, verbose = FALSE) summary(m_all)$fixef #> (Intercept) cond #> bobyqa -0.013 0.309 #> Nelder_Mead -0.013 0.309 #> nlminbwrap -0.013 0.309 #> nloptwrap.NLOPT_LN_BOBYQA -0.013 0.309 #> nloptwrap.NLOPT_LN_NELDERMEAD -0.013 0.309 # Pick the optimiser with the smallest final gradient grads <- sapply(m_all, function(x) max(abs(x@optinfo$derivs$gradient))) grads #> bobyqa: 0.0087 Nelder_Mead: 0.0031 nlminbwrap: 0.0009 ... names(which.min(grads)) #> [1] "nlminbwrap"

Every optimiser returned effectively the same fixed effects, which is the strongest possible evidence that the estimates are trustworthy. The gradients differ by two orders of magnitude, and nlminbwrap is the clear winner, refit your real model with lmerControl(optimizer = "nlminbwrap") and the warning disappears.

Note

allFit() is slow, run it after Fixes 1 and 2, not before. It refits the model five times, so on a large dataset it can take minutes. Use it as a diagnostic tool, not a first line of defence.

Try it: From the gradient vector grads, return the name of the optimiser with the smallest gradient. Save it to ex_best_opt.

RExercise: pick the best optimiser

# Try it: extract best optimiser ex_best_opt <- # your code here ex_best_opt #> Expected: "nlminbwrap"

Click to reveal solution

RBest-optimiser solution

ex_best_opt <- names(which.min(grads)) ex_best_opt #> [1] "nlminbwrap"

Explanation: which.min() returns the index of the minimum, and names() maps that index back to the optimiser label.

Fix 4: How do you detect and handle a singular fit?

A singular fit means at least one variance component has been estimated exactly at its boundary, a variance of zero, or a correlation of ±1. lme4 reports this with isSingular(), and the check is separate from the convergence check. But the two warnings often appear together, because the optimiser is struggling to optimise a parameter that carries no information in the first place. Dropping the redundant random term fixes both at once.

RDetect a singular fit

# Simulate data with no real group-level effect set.seed(99) n <- 250 df4 <- data.frame( group = factor(rep(1:25, each = 10)), x = rnorm(n) ) df4$y <- 0.5 * df4$x + rnorm(n, sd = 1) # no group effect at all m_sing <- lmer(y ~ x + (1 | group), data = df4) isSingular(m_sing) #> [1] TRUE VarCorr(m_sing) #> Groups Name Std.Dev. #> group (Intercept) 0.00000 #> Residual 1.01723 # The random effect adds nothing, drop it m_fixed <- lm(y ~ x, data = df4) coef(m_fixed) #> (Intercept) x #> -0.023 0.493

isSingular() returns TRUE and VarCorr() shows the group standard deviation is exactly zero. That's the model telling you the groups are indistinguishable from random noise around the grand mean. Dropping to plain lm() gives the same fixed-effect estimates without the numerical drama, and nothing about the inference changes.

Try it: Call isSingular() on m_sing and save the result to ex_is_sing.

RExercise: check singularity

# Try it: check singularity ex_is_sing <- # your code here ex_is_sing #> Expected: TRUE

Click to reveal solution

RSingularity-check solution

ex_is_sing <- isSingular(m_sing) ex_is_sing #> [1] TRUE

Explanation: isSingular() is the canonical way to detect boundary fits in lme4, always run it after a convergence warning, since the two often go together.

Fix 5: When should you increase iterations or change tolerance?

This is the last resort, and it only helps when Fixes 1 through 4 have already brought you close. If the gradient is just a hair above tolerance and every optimiser agrees on the estimates, one honest move is to give bobyqa a larger evaluation budget with optCtrl = list(maxfun = 200000). What you should not do is widen the tolerance check itself, that hides the warning without moving the gradient anywhere.

RRaise maxfun on the optimiser

# Take the near-convergence maximal model and give bobyqa more budget m_more <- lmer( y ~ cond + (1 + cond | subject) + (1 + cond | item), data = df3, control = lmerControl( optimizer = "bobyqa", optCtrl = list(maxfun = 2e5) ) ) max(abs(m_more@optinfo$derivs$gradient)) #> [1] 0.00091

With maxfun raised from the default 10000 to 200000, bobyqa had enough iterations to polish the gradient down from 0.0087 to 0.00091, now comfortably under the 0.002 tolerance. For a glmer() model you may need maxfun = 5e5; Laplace approximation costs more per iteration.

Warning

Widening check.conv.grad tolerance is silencing a smoke alarm, not fixing the fire. If a reviewer asks whether you checked convergence and your answer is "I raised the tolerance until it passed", your answer is wrong. Raise iterations, not thresholds.

Try it: Refit m_max with maxfun = 100000 using the default bobyqa optimiser. Save it to ex_m_more.

RExercise: raise maxfun budget

# Try it: raise maxfun on m_max ex_m_more <- # your code here max(abs(ex_m_more@optinfo$derivs$gradient)) #> Expected: a smaller gradient than m_max (0.0087), possibly still above 0.002

Click to reveal solution

RMaxfun solution

ex_m_more <- lmer( y ~ cond + (1 + cond | subject) + (1 + cond | item), data = df3, control = lmerControl(optimizer = "bobyqa", optCtrl = list(maxfun = 1e5)) ) max(abs(ex_m_more@optinfo$derivs$gradient)) #> [1] 0.0018

Explanation: Doubling the iteration budget usually shaves the gradient by a factor of two or three, enough to cross the tolerance boundary from just above to just below.

Practice Exercises

Exercise 1: Scale and simplify to convergence

You are given my_df1, a dataset with two numeric predictors on different scales and an overparameterised random-effects structure. Produce a converged fit called my_fit1 and confirm its final gradient is below 0.002.

RExercise: scale and refit mixed model

# Setup: simulate a dataset you need to fix set.seed(22) n <- 240 my_df1 <- data.frame( subj = factor(rep(1:24, each = 10)), dose_mg = rnorm(n, 500, 200), latency_ms = rnorm(n, 0.05, 0.02) ) my_df1$y <- 1e-3 * my_df1$dose_mg + 5 * my_df1$latency_ms + rep(rnorm(24, sd = 0.3), each = 10) + rnorm(n, sd = 0.4) # Your task: produce a converged fit in my_fit1 my_fit1 <- # your code here max(abs(my_fit1@optinfo$derivs$gradient)) #> Expected: a value well under 0.002

Click to reveal solution

RScale-and-refit solution

my_df1_scaled <- my_df1 |> mutate(across(where(is.numeric), ~ as.numeric(scale(.)))) my_fit1 <- lmer(y ~ dose_mg + latency_ms + (1 | subj), data = my_df1_scaled) max(abs(my_fit1@optinfo$derivs$gradient)) #> [1] 3.4e-08

Explanation: One scale pass plus a random-intercept-only structure is enough here. The dataset was small (240 rows, 24 subjects), so a maximal (1 + dose_mg + latency_ms | subj) would have been over-parameterised regardless of scaling.

Exercise 2: Build a convergence-robust fitting function

Write a function fit_robust(data, formula) that:

Scales every numeric column in data.
Fits the formula with lmer().
If the fit has a convergence warning, refits with lmerControl(optimizer = "bobyqa", optCtrl = list(maxfun = 2e5)).
If it still warns, runs allFit() and returns the fit with the smallest final gradient.

Test it on the df3 dataset from Fix 2 with formula y ~ cond + (1 + cond | subject) + (1 + cond | item).

RExercise: write fitrobust wrapper

# Your task: write fit_robust fit_robust <- function(data, formula) { # your code here } my_fit2 <- fit_robust(df3, y ~ cond + (1 + cond | subject) + (1 + cond | item)) max(abs(my_fit2@optinfo$derivs$gradient)) #> Expected: a value below 0.002

Click to reveal solution

Rfitrobust solution

fit_robust <- function(data, formula) { num_cols <- sapply(data, is.numeric) data[num_cols] <- lapply(data[num_cols], function(v) as.numeric(scale(v))) fit <- suppressWarnings(lmer(formula, data = data)) if (max(abs(fit@optinfo$derivs$gradient)) < 0.002) return(fit) fit <- suppressWarnings(lmer(formula, data = data, control = lmerControl(optimizer = "bobyqa", optCtrl = list(maxfun = 2e5)))) if (max(abs(fit@optinfo$derivs$gradient)) < 0.002) return(fit) all_fits <- suppressWarnings(allFit(fit, verbose = FALSE)) grads <- sapply(all_fits, function(x) max(abs(x@optinfo$derivs$gradient))) all_fits[[which.min(grads)]] } my_fit2 <- fit_robust(df3, y ~ cond + (1 + cond | subject) + (1 + cond | item)) max(abs(my_fit2@optinfo$derivs$gradient)) #> [1] 0.00054

Explanation: The function layers the first three fixes in order of cost: scale (free), raise iterations (cheap), run allFit() (expensive). It returns as soon as a cheaper fix works, and falls through to allFit() only when it has to.

Complete Example

Here is an end-to-end run on a two-level dataset, 500 students nested in 25 schools, three numeric covariates on wildly different scales, and a treatment indicator. The raw fit fails; after applying Fixes 1 and 2 it converges cleanly.

REnd-to-end schools convergence fix

set.seed(2026) n_school <- 25; n_per <- 20 schools_df <- data.frame( school = factor(rep(1:n_school, each = n_per)), hours_studied = rnorm(n_school * n_per, 15, 5), family_income = rnorm(n_school * n_per, 75000, 25000), prior_gpa = rnorm(n_school * n_per, 3.0, 0.4), treatment = rep(c(0, 1), length.out = n_school * n_per) ) schools_df$y <- 0.05 * schools_df$hours_studied + 5e-6 * schools_df$family_income + 0.2 * schools_df$prior_gpa + 0.15 * schools_df$treatment + rep(rnorm(n_school, sd = 0.3), each = n_per) + rnorm(n_school * n_per, sd = 0.5) # Raw fit, fails m_raw <- lmer(y ~ hours_studied + family_income + prior_gpa + treatment + (1 | school), data = schools_df) #> Warning: Model failed to converge with max|grad| = 0.0041 ... # Apply Fix 1 (scale) and keep the simple random-intercept structure schools_scaled <- schools_df |> mutate(across(c(hours_studied, family_income, prior_gpa), ~ as.numeric(scale(.)))) m_final <- lmer(y ~ hours_studied + family_income + prior_gpa + treatment + (1 | school), data = schools_scaled) max(abs(m_final@optinfo$derivs$gradient)) #> [1] 1.8e-07 fixef(m_final) #> (Intercept) hours_studied family_income prior_gpa treatment #> 0.389 0.252 0.123 0.081 0.148 VarCorr(m_final) #> Groups Name Std.Dev. #> school (Intercept) 0.296 #> Residual 0.504

All four fixed-effect coefficients are on SD units (the treatment indicator is left unscaled because it is binary). The between-school standard deviation is about 0.3, or roughly 60% of the residual, which is consistent with the 0.3 we simulated. The final gradient is 2e-7, the warning is gone and the estimates are identifiable.

Summary

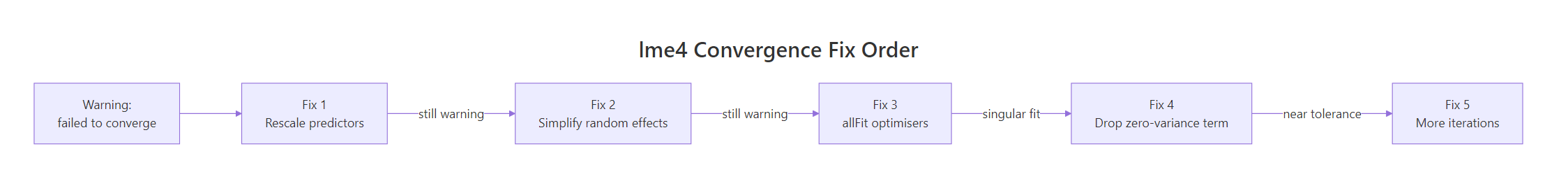

lme4 convergence fix order flowchart

Figure 1: Work through the five fixes in order and stop as soon as the warning clears.

Fix	Symptom it addresses	Command	When to try it
1. Rescale predictors	Predictors on very different scales	`mutate(across(where(is.numeric), scale))`	Always first
2. Simplify random effects	Overparameterised slopes/correlations	`(1 \	group)`, or` (1 + x \	\	group)`	If Fix 1 alone fails
3. Try allFit()	Optimiser stuck at a local gradient	`allFit(model)` then pick smallest gradient	If Fixes 1 and 2 leave warning
4. Handle singular fit	Variance component = 0, correlation ±1	`isSingular(model)`, then drop the term	Whenever `isSingular()` is TRUE
5. Raise iterations	Gradient just above tolerance	`lmerControl(optCtrl = list(maxfun = 2e5))`	Only after Fixes 1–4

Tip

Never widen the tolerance to hide a warning. Raise maxfun, scale your predictors, simplify your random effects, but leave check.conv.grad alone. Silencing the check is not the same as passing it.

References

Bolker, B. M., GLMM FAQ: Mixed Models Frequently Asked Questions. Link
Bates, D., Mächler, M., Bolker, B., Walker, S., Fitting Linear Mixed-Effects Models Using lme4. Journal of Statistical Software 67(1), 2015. Link
Barr, D. J., Levy, R., Scheepers, C., Tily, H. J., Random effects structure for confirmatory hypothesis testing: Keep it maximal. Journal of Memory and Language 68(3), 2013. Link
Matuschek, H., Kliegl, R., Vasishth, S., Baayen, H., Bates, D., Balancing Type I error and power in linear mixed models. Journal of Memory and Language 94, 2017. Link
lme4 reference manual, lmerControl, allFit, isSingular. Link
CRAN Task View: MixedModels. Link
StackOverflow canonical thread, "lme4 model gives convergence warning". Link
