Understanding R Memory: lobstr Package -- Object Sizes & References

The lobstr package is R's best tool for understanding memory usage. It shows you the true size of objects (including shared components), whether two variables point to the same data, and how R's memory is structured internally. If you've ever wondered "why is my R session using 8 GB?", lobstr gives you the answer.

Base R has object.size(), but it over-counts shared memory. lobstr::obj_size() accounts for sharing and gives you accurate numbers. This tutorial shows you how to use lobstr and how to think about R memory.

obj_size(): True Object Size

obj_size() tells you exactly how much memory an object uses, correctly accounting for shared components.

# Base R object.size vs lobstr::obj_size x <- 1:1000 # object.size() shows the size of this object cat("object.size:", object.size(x), "bytes\n") # For simple objects, they agree. The difference shows with shared data. y <- list(x, x, x) # Three references to the SAME vector # object.size counts x three times cat("object.size of list:", object.size(y), "bytes\n") # lobstr::obj_size would count x only once # Because all three list elements point to the same vector cat("True size is smaller due to sharing\n")









Size of different data types









# How much memory do different types use?
cat("Empty integer(0):", object.size(integer(0)), "bytes\n")
cat("1 integer:", object.size(1L), "bytes\n")
cat("1 double:", object.size(1.0), "bytes\n")
cat("1 character:", object.size("a"), "bytes\n")
cat("1 logical:", object.size(TRUE), "bytes\n")

cat("\n--- Scaling ---\n")
cat("1000 integers:", object.size(integer(1000)), "bytes\n")
cat("1000 doubles:", object.size(double(1000)), "bytes\n")
cat("1000 logicals:", object.size(logical(1000)), "bytes\n")

# Every R object has overhead (~40-56 bytes for the header)
# Then the actual data: 4 bytes/integer, 8 bytes/double, 4 bytes/logical
cat("\nPer-element sizes:\n")
n <- 10000
cat("Integer:", (object.size(integer(n)) - object.size(integer(0))) / n, "bytes/element\n")
cat("Double:", (object.size(double(n)) - object.size(double(0))) / n, "bytes/element\n")






















Understanding Object Overhead



Every R object carries metadata overhead. This is why a single integer is not 4 bytes -- it's about 56 bytes due to the SEXP header, type info, and memory management data.









# The overhead is fixed per object, not per element
sizes <- sapply(c(1, 10, 100, 1000, 10000), function(n) {
  object.size(integer(n))
})

cat("Size of integer vectors:\n")
for (i in seq_along(sizes)) {
  n <- c(1, 10, 100, 1000, 10000)[i]
  cat(sprintf("  n=%5d: %8d bytes (%5.1f bytes/element)\n",
              n, sizes[i], sizes[i] / n))
}
cat("\nOverhead matters for small objects, negligible for large ones.\n")

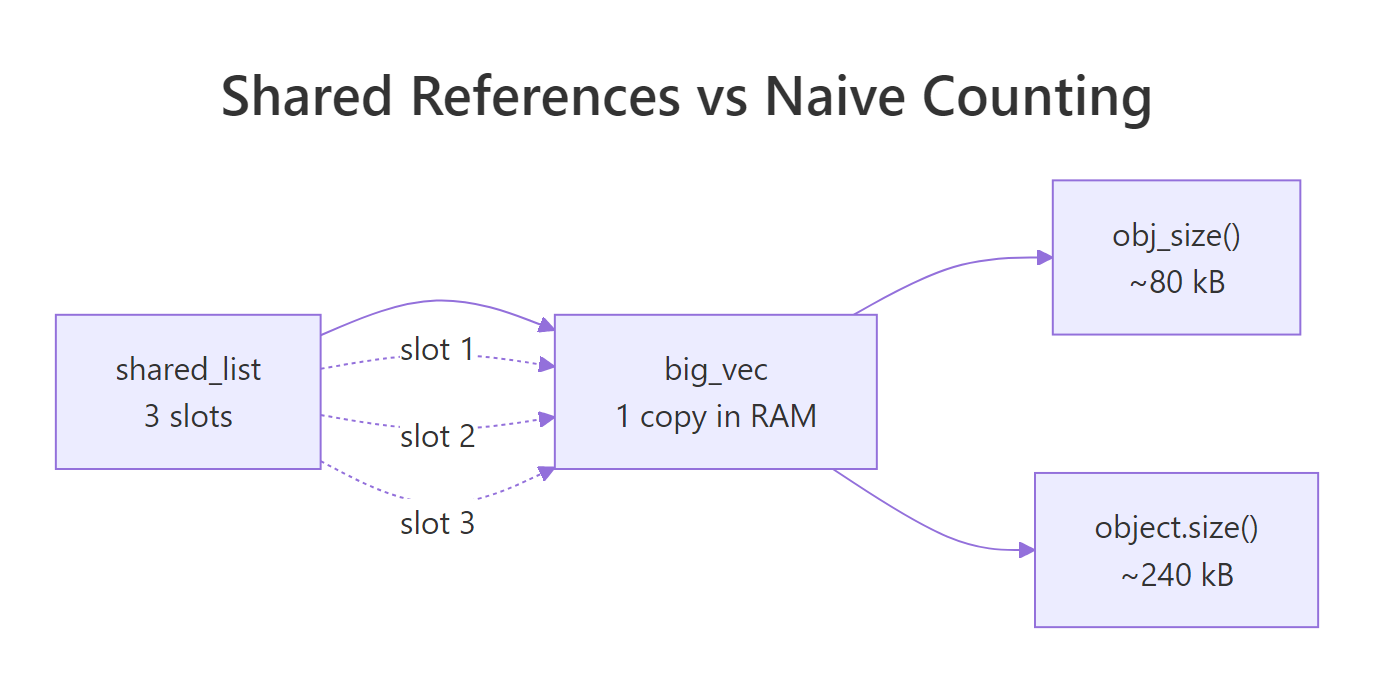

Detecting Shared References



Understanding when objects share memory is crucial for performance. Here's how to check.









# Two names pointing to the same data
x <- 1:1000000
y <- x

# They share memory
cat("Before modification:\n")
cat("  x and y identical:", identical(x, y), "\n")
cat("  Combined size should be ~same as one vector\n")

# After modification, they're separate
y[1] <- 0L
cat("\nAfter y[1] <- 0L:\n")
cat("  x[1]:", x[1], "\n")
cat("  y[1]:", y[1], "\n")
cat("  Now two separate copies exist in memory\n")






















Data frame column sharing









# Data frames share column vectors efficiently
df1 <- data.frame(
  a = 1:10000,
  b = rnorm(10000),
  c = sample(letters, 10000, replace = TRUE)
)

df2 <- df1  # Shares ALL columns

# Check sizes
s1 <- object.size(df1)
cat("df1 size:", s1, "bytes\n")

# Modify one column -- only that column is copied
df2$a <- df2$a * 2

cat("After modifying df2$a:\n")
cat("  df1$a[1]:", df1$a[1], "\n")
cat("  df2$a[1]:", df2$a[1], "\n")
cat("  Columns b and c are still shared\n")






















Memory Profiling Techniques



Measuring total R memory usage









# gc() reports current memory usage
gc_info <- gc()
cat("Memory used (Mb):\n")
print(gc_info)

# Track memory before and after an operation
before <- gc()
big_data <- matrix(rnorm(1000000), nrow = 1000)
after <- gc()

used_before <- before[2, 2]  # Mb used
used_after <- after[2, 2]
cat("\nMemory increase:", round(used_after - used_before, 1), "Mb\n")

rm(big_data)
gc()






















Profiling memory in functions









# Simple memory tracking wrapper
mem_track <- function(expr_label, expr) {
  gc(reset = TRUE)
  before <- gc()[2, 2]
  result <- expr
  after <- gc()[2, 2]
  cat(sprintf("%s: %.1f Mb (before) -> %.1f Mb (after) = +%.1f Mb\n",
              expr_label, before, after, after - before))
  invisible(result)
}

# Track different operations
mem_track("Create 1M doubles", rnorm(1000000))
mem_track("Create 1M integers", sample.int(100, 1000000, replace = TRUE))
mem_track("Create data.frame", data.frame(x = rnorm(1000000), y = rnorm(1000000)))






















ALTREP: Efficient Representation



R 3.5+ introduced ALTREP (alternative representations) for compact storage of certain patterns.









# ALTREP: 1:n uses almost no memory regardless of n
small_seq <- 1:100
huge_seq <- 1:100000000  # 100 million!

cat("1:100 size:", object.size(small_seq), "bytes\n")
cat("1:100M size:", object.size(huge_seq), "bytes\n")
# Both are tiny! ALTREP stores just start, end, and step.

# But materializing it uses full memory
# materialized <- huge_seq + 0  # This would allocate ~400 MB

# Sequences are ALTREP; random vectors are not
random_vec <- sample.int(100, 100)
cat("sample(100) size:", object.size(random_vec), "bytes\n")
cat("1:100 size:", object.size(1:100), "bytes (ALTREP!)\n")






















String Interning and Character Vectors



R caches unique strings in a global string pool. Duplicate strings share memory.









# Character vectors with repeated values are efficient
unique_strings <- paste0("item_", 1:10000)
repeated_strings <- rep(c("cat", "dog", "bird"), length.out = 10000)

cat("10000 unique strings:", object.size(unique_strings), "bytes\n")
cat("10000 repeated (3 unique):", object.size(repeated_strings), "bytes\n")

# Factors are even more compact for repeated strings
f <- factor(repeated_strings)
cat("As factor:", object.size(f), "bytes\n")

cat("\nFactors store integer codes + a small levels vector.\n")
cat("For high-cardinality data, characters may be better.\n")






















Common Memory Traps









# Trap 1: Growing vectors in a loop
cat("=== Trap 1: Growing vectors ===\n")
n <- 50000

# Bad: grows the vector each iteration
t1 <- system.time({
  result <- c()
  for (i in 1:n) result <- c(result, i)
})

# Good: pre-allocate
t2 <- system.time({
  result <- numeric(n)
  for (i in 1:n) result[i] <- i
})

cat("Growing:", t1["elapsed"], "sec\n")
cat("Pre-alloc:", t2["elapsed"], "sec\n")

# Trap 2: Unnecessary copies via intermediate variables
cat("\n=== Trap 2: Intermediate copies ===\n")
df <- data.frame(x = rnorm(100000))

# This creates an extra copy:
# temp <- df$x
# temp <- temp * 2
# df$x <- temp

# This is more memory-efficient:
df$x <- df$x * 2
cat("Direct modification avoids intermediate copies\n")






















Measuring Specific Objects









# Useful function to summarize memory usage of workspace
workspace_summary <- function() {
  objs <- ls(envir = .GlobalEnv)
  if (length(objs) == 0) {
    cat("Workspace is empty\n")
    return(invisible(NULL))
  }

  sizes <- sapply(objs, function(nm) {
    object.size(get(nm, envir = .GlobalEnv))
  })

  df <- data.frame(
    object = objs,
    size_bytes = sizes,
    size_kb = round(sizes / 1024, 1),
    stringsAsFactors = FALSE
  )
  df <- df[order(-df$size_bytes), ]
  rownames(df) <- NULL

  cat("Top objects by memory:\n")
  print(head(df, 10))
  cat("\nTotal:", round(sum(sizes) / 1024 / 1024, 2), "MB\n")
}

# Create some objects to inspect
small_vec <- 1:100
medium_df <- mtcars
big_matrix <- matrix(rnorm(100000), nrow = 1000)
string_vec <- rep(letters, 1000)

workspace_summary()

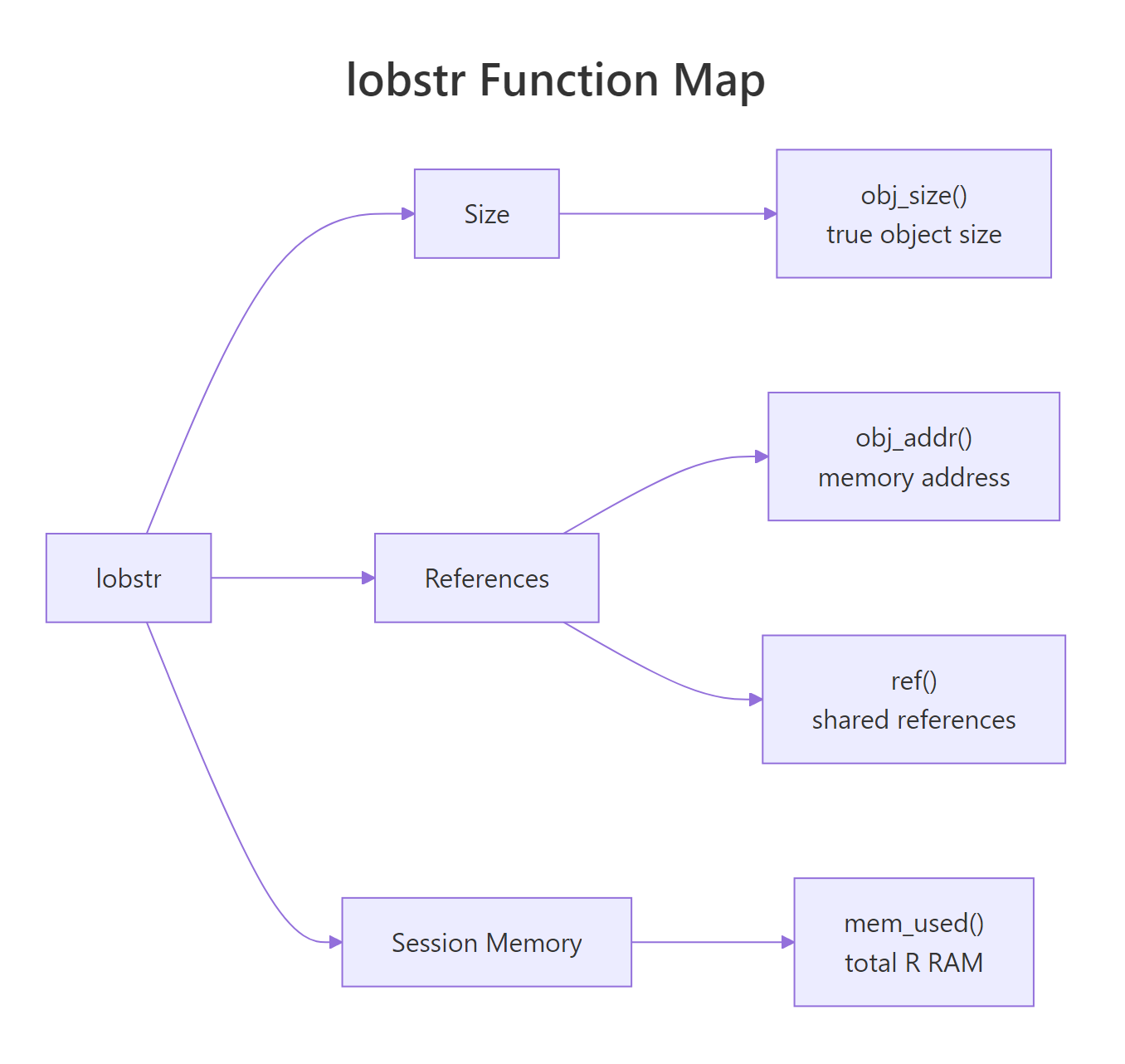

Summary Table







Function/Concept
Purpose
Notes






object.size(x)
Size of object (base R)
Over-counts shared components




lobstr::obj_size(x)
True size accounting for sharing
Recommended for accurate measurement




lobstr::obj_addr(x)
Memory address of object
Check if two vars share data




lobstr::ref(x, y)
Visualize shared references
Shows sharing tree




lobstr::mem_used()
Total R memory usage
Like gc() but simpler




gc()
Garbage collect + report memory
Use gc()[2,2] for Mb used




tracemem(x)
Alert on copy
Base R, prints copy events




ALTREP
Compact representation
1:n is O(1) memory




String interning
Shared string storage
Repeated strings are efficient







Practice Exercises



Exercise 1: Without running it, predict: is object.size(list(1:1000, 1:1000)) closer to the size of one 1:1000 vector or two? Why?



Click to reveal solution

`object.size()` reports the size as roughly **two** vectors, because it doesn't account for potential sharing. Each list element is measured independently.

However, with `lobstr::obj_size()`, if both list elements point to the same vector (created as `x <- 1:1000; list(x, x)`), the true size would be closer to one vector plus list overhead.

```r





x <- 1:1000
cat("One vector:", object.size(x), "bytes\n")
cat("list(x, x):", object.size(list(x, x)), "bytes\n")
cat("list(1:1000, 1:1000):", object.size(list(1:1000, 1:1000)), "bytes\n")

# list(x, x) shares the vector; list(1:1000, 1:1000) creates two separate vectors
# object.size doesn't distinguish, but lobstr::obj_size would


















Exercise 2: Write a function that compares the memory usage of storing data as a character vector vs a factor, for different numbers of unique values.



Click to reveal solution

```r





compare_storage <- function(n = 100000, n_unique = c(2, 10, 100, 1000, 10000)) {
  cat(sprintf("%-12s %-15s %-15s %-10s\n", "Unique", "Character (KB)", "Factor (KB)", "Winner"))
  cat(strrep("-", 55), "\n")

  for (nu in n_unique) {
    vals <- sample(paste0("val_", 1:nu), n, replace = TRUE)
    char_size <- as.numeric(object.size(vals)) / 1024
    fact_size <- as.numeric(object.size(factor(vals))) / 1024
    winner <- if (char_size < fact_size) "character" else "factor"
    cat(sprintf("%-12d %-15.1f %-15.1f %-10s\n", nu, char_size, fact_size, winner))
  }
}

compare_storage()


















Exercise 3: Demonstrate that ALTREP makes 1:n constant-size by measuring 1:100, 1:1000000, and 1:100000000.



Click to reveal solution

```r





sizes <- sapply(c(100, 1000000, 100000000), function(n) {
  as.numeric(object.size(1:n))
})

cat("1:100        :", sizes[1], "bytes\n")
cat("1:1,000,000  :", sizes[2], "bytes\n")
cat("1:100,000,000:", sizes[3], "bytes\n")
cat("\nAll the same size! ALTREP stores only (start, end, step).\n")
cat("\nCompare with materialized:\n")
cat("rnorm(100):", object.size(rnorm(100)), "bytes\n")
cat("rnorm(1000000):", object.size(rnorm(1000000)), "bytes\n")


















FAQ



Q: Why does gc() sometimes not free memory? gc() collects unreferenced R objects, but the freed memory isn't always returned to the OS. R maintains a memory pool. Also, if objects are still referenced (even indirectly through closures or environments), they won't be collected.



Q: How much memory overhead does each R object have? Every R object (SEXP) has a header of about 40-56 bytes on 64-bit systems. This includes type info, reference count, attributes pointer, and memory management data. For small objects (a single integer), the overhead dominates.



Q: Is lobstr available in WebR? As of 2026, lobstr may not be available in WebR. The examples in this tutorial use base R alternatives (object.size(), gc(), tracemem()) that work everywhere. Install lobstr in a regular R session with install.packages("lobstr").
