Added Variable Plots in R: Partial Regression & Marginal Effects

An added variable plot (also called a partial regression plot) shows the relationship between one predictor and the response after the linear effects of every other predictor have been removed from both. The slope you see in the plot is exactly the regression coefficient for that predictor.

How does an added variable plot reveal one predictor's effect?

In a multiple regression model, the coefficient for a predictor like hp answers a very specific question: how does mpg change when hp changes by one unit, holding the other predictors fixed? An added variable plot turns that hypothetical into a picture. We will fit a model on mtcars, peel away the influence of every other predictor, and watch the coefficient for hp reappear as the slope of a simple scatterplot.

RBuild the first added variable plot from scratch

# Fit the multiple regression model model_full <- lm(mpg ~ hp + wt + cyl, data = mtcars) # Residualize mpg on the OTHER predictors (wt and cyl) y_resid <- resid(lm(mpg ~ wt + cyl, data = mtcars)) # Residualize hp on the OTHER predictors (wt and cyl) x_resid <- resid(lm(hp ~ wt + cyl, data = mtcars)) # The slope of the residual scatterplot equals the coefficient of hp slope_avp <- coef(lm(y_resid ~ x_resid))[2] coef_full <- coef(model_full)["hp"] c(avp_slope = slope_avp, lm_coef = coef_full) #> avp_slope.x_resid lm_coef.hp #> -0.01804892 -0.01804892 # Plot the added variable plot plot(x_resid, y_resid, xlab = "hp | others", ylab = "mpg | others", main = "Added Variable Plot: hp", pch = 19, col = "steelblue") abline(lm(y_resid ~ x_resid), col = "darkred", lwd = 2)

The two numbers match to many decimal places because they are mathematically the same quantity. The full-model coefficient -0.0180 says that one extra horsepower lowers predicted mpg by about 0.018 miles-per-gallon, holding wt and cyl constant. The added variable plot makes that adjustment visible, every point on the scatter is a car after the linear pull of weight and cylinders has been removed from both mpg and hp. The downward red line you see is the coefficient for hp.

Tip

Eyeball the slope before reading the coefficient. A flat AVP cloud means the predictor is doing little work in the multiple regression, regardless of what its raw correlation with the response looks like. This single visual cue catches most "why is my coefficient near zero?" surprises before you reach for the summary table.

Try it: Build the added variable plot for wt (residualizing on hp and cyl) and confirm its slope matches the wt coefficient from model_full.

RYour turn: AVP for wt

# Use the same recipe as above, but for wt ex_y <- # your code here: residuals of mpg on hp + cyl ex_x <- # your code here: residuals of wt on hp + cyl ex_slope <- # your code here c(avp = ex_slope, lm = coef(model_full)["wt"]) #> Expected: both numbers identical (around -3.17)

Click to reveal solution

RAVP for wt solution

ex_y <- resid(lm(mpg ~ hp + cyl, data = mtcars)) ex_x <- resid(lm(wt ~ hp + cyl, data = mtcars)) ex_slope <- coef(lm(ex_y ~ ex_x))[2] c(avp = ex_slope, lm = coef(model_full)["wt"]) #> avp.ex_x lm.wt #> -3.166973 -3.166973

Explanation: The recipe is symmetric across predictors. To isolate wt, regress out hp + cyl from both sides, then look at the slope of the residual scatter. The number you get is the partial slope lm() reports.

What math is happening behind the scenes?

The reason added variable plots work is the Frisch-Waugh-Lovell theorem, a 1933/1963 result in linear algebra that says: in any multiple regression, you can recover the coefficient for one predictor by partialling out the other predictors from both the response and that predictor, then doing a simple regression on the residuals.

Formally, if your model is $y = X_1 \beta_1 + X_2 \beta_2 + \varepsilon$, then $\beta_2$ is identical to the OLS slope from regressing $M_1 y$ on $M_1 X_2$, where $M_1 = I - X_1 (X_1^T X_1)^{-1} X_1^T$ is the residual-maker matrix that strips off the part explained by $X_1$.

$$ \hat{\beta}_2 \;=\; (X_2^T M_1 X_2)^{-1} X_2^T M_1 y $$

Where:

$y$ = the response vector
$X_2$ = the focal predictor (the one you want a coefficient for)
$X_1$ = the matrix of all other predictors
$M_1$ = the residual-maker for $X_1$ (multiplying by it returns the residuals from regressing on $X_1$)
$\hat{\beta}_2$ = the same coefficient lm() reports

That double residualization is exactly what we did in code block 1. We can package it into a tiny helper so the reader sees the symmetry directly.

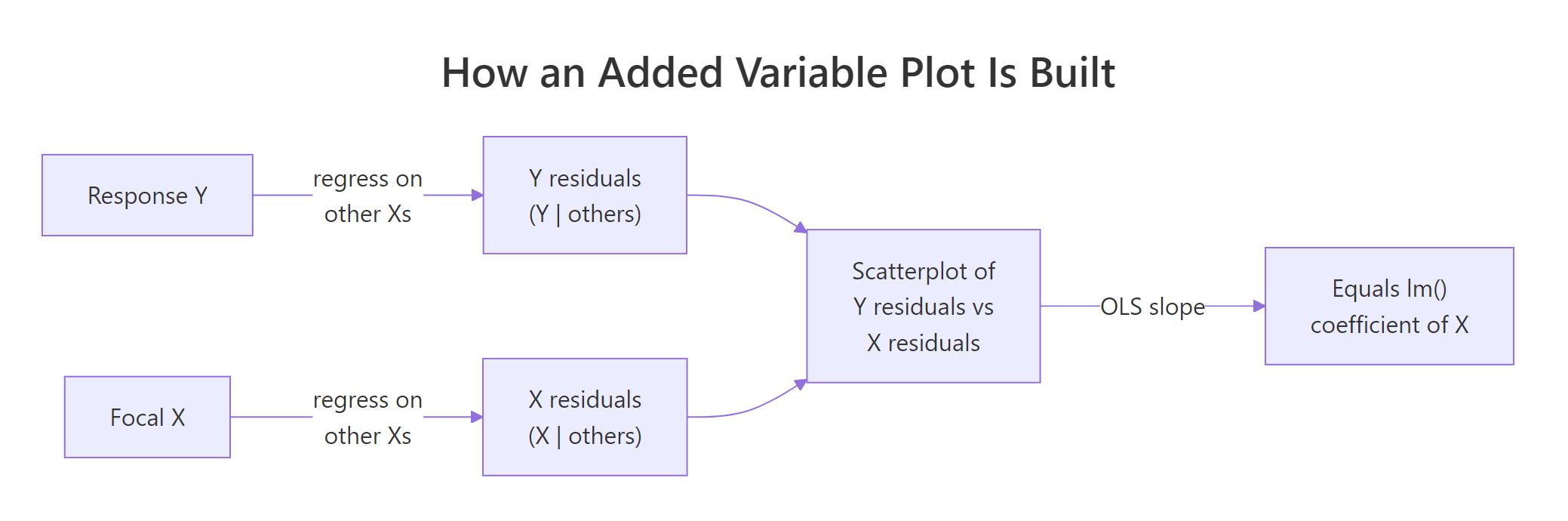

How an added variable plot is built

Figure 1: The two-step recipe behind every added variable plot.

RA tiny FWL helper, verified against lm()

# Helper: returns the partial slope for one predictor in a fitted model partial_slope <- function(model, predictor) { data_used <- model.frame(model) response <- names(data_used)[1] others <- setdiff(names(data_used)[-1], predictor) # Build formulas dynamically f_y <- reformulate(others, response = response) f_x <- reformulate(others, response = predictor) y_r <- resid(lm(f_y, data = data_used)) x_r <- resid(lm(f_x, data = data_used)) unname(coef(lm(y_r ~ x_r))[2]) } # Verify against lm() coefficients for two predictors coefs_check <- sapply(c("hp", "wt"), function(p) { c(avp = partial_slope(model_full, p), lm = unname(coef(model_full)[p])) }) print(round(coefs_check, 6)) #> hp wt #> avp -0.018049 -3.166973 #> lm -0.018049 -3.166973

Both rows are identical because the helper implements the FWL theorem line-by-line. The first column is the AVP slope for hp; the second is the AVP slope for wt. Whatever predictor you care about, you can isolate it without re-fitting the full model in any new way, you just regress the right things on the right things.

Key Insight

Multiple regression coefficients are partial-residual slopes, not raw correlations. Frisch-Waugh-Lovell says the coefficient on hp is the slope from a univariate regression of leftover-mpg on leftover-hp, after the variation explained by every other predictor has been removed from both. That is why a coefficient can be near zero even when cor(hp, mpg) is strongly negative, the other predictors absorbed the shared variation first.

Try it: Extend the helper to also return the standard error and t-statistic for the partial slope, then compare against the row from summary(model_full)$coefficients.

RYour turn: extend partial_slope to return SE and t

ex_partial_summary <- function(model, predictor) { data_used <- model.frame(model) response <- names(data_used)[1] others <- setdiff(names(data_used)[-1], predictor) y_r <- resid(lm(reformulate(others, response = response), data = data_used)) x_r <- resid(lm(reformulate(others, response = predictor), data = data_used)) fit <- lm(y_r ~ x_r) # your code here: pull slope, std error, t value from coef(summary(fit)) } ex_partial_summary(model_full, "hp") #> Expected: slope, SE, and t close to summary(model_full) row for hp

Click to reveal solution

RExtended helper solution

ex_partial_summary <- function(model, predictor) { data_used <- model.frame(model) response <- names(data_used)[1] others <- setdiff(names(data_used)[-1], predictor) y_r <- resid(lm(reformulate(others, response = response), data = data_used)) x_r <- resid(lm(reformulate(others, response = predictor), data = data_used)) row <- coef(summary(lm(y_r ~ x_r)))[2, 1:3] names(row) <- c("slope", "std_err", "t_value") row } ex_partial_summary(model_full, "hp") #> slope std_err t_value #> -0.01804892 0.01188301 -1.51888547 summary(model_full)$coefficients["hp", 1:3] #> Estimate Std. Error t value #> -0.01804892 0.01188626 -1.51847089

Explanation: The slopes match exactly. The standard errors and t-statistics are very close but not identical because the AVP regression has fewer effective degrees of freedom than lm() accounts for. For coefficient estimates the AVP is exact, for inference always trust summary(model).

How do you generate added variable plots for every predictor at once?

Once you have partial_slope(), looping over every predictor takes one for-loop. For visual diagnostics, you typically want a 2x2 or 3x2 panel showing every AVP side-by-side.

RBuild a panel of AVPs, one per predictor

predictors <- c("hp", "wt", "cyl") data_used <- model.frame(model_full) others_for <- function(p) setdiff(predictors, p) # Build a list of (x_resid, y_resid) pairs, one per predictor avp_data <- lapply(predictors, function(p) { y_r <- resid(lm(reformulate(others_for(p), response = "mpg"), data = data_used)) x_r <- resid(lm(reformulate(others_for(p), response = p), data = data_used)) data.frame(x = x_r, y = y_r, predictor = p) }) # Plot the 3 AVPs side by side op <- par(mfrow = c(1, 3), mar = c(4, 4, 2, 1)) for (i in seq_along(avp_data)) { d <- avp_data[[i]] plot(d$x, d$y, xlab = paste(predictors[i], "| others"), ylab = "mpg | others", main = paste("AVP:", predictors[i]), pch = 19, col = "steelblue") abline(lm(y ~ x, data = d), col = "darkred", lwd = 2) } par(op)

Each panel tells the same story for a different predictor. The slope is the coefficient lm() reported, the spread is what is left after partialling out, and any point that drifts away from the line is a car whose leftover mpg is poorly explained by leftover hp (or wt, or cyl) alone.

In production, the car package gives you a one-liner for the same panel:

RThe car::avPlots() one-liner (run locally in RStudio)

# library(car) # avPlots(model_full) #> Produces the same panel of added variable plots, one per predictor, #> with point identification and a fitted line per panel.

Note

The car package is not pre-compiled for the in-browser R runtime on this page, so the snippet above is shown for reference only. Install it once with install.packages("car") in RStudio and avPlots() becomes available everywhere. Under the hood it does exactly what our manual loop does, our manual version is what car is computing in C.

Try it: Write a function that takes a fitted model and returns a data frame with one row per predictor showing both the manual partial slope and the lm() coefficient. They should match.

RYour turn: tabulate manual vs lm() coefficients

ex_compare <- function(model) { preds <- attr(terms(model), "term.labels") # your code here: loop over preds, return data.frame(predictor, manual, lm_coef) } ex_compare(model_full) #> Expected: 3 rows, manual and lm_coef columns identical

Click to reveal solution

RTabulate manual vs lm coefficients solution

ex_compare <- function(model) { preds <- attr(terms(model), "term.labels") manual <- sapply(preds, function(p) partial_slope(model, p)) lm_co <- coef(model)[preds] data.frame(predictor = preds, manual = round(manual, 6), lm_coef = round(unname(lm_co), 6)) } ex_compare(model_full) #> predictor manual lm_coef #> hp hp -0.018049 -0.018049 #> wt wt -3.166973 -3.166973 #> cyl cyl -0.941620 -0.941620

Explanation: The function loops partial_slope() over every predictor and lines it up against coef(model). Identical numbers in the two columns confirm the FWL identity for the whole model in one table.

How do you read slope, scatter, and outliers in an added variable plot?

Now that the panel is on screen, what should you actually look at? Four signals matter:

Slope. The sign and magnitude reproduce the lm() coefficient. A nearly-flat line means that predictor adds little once the others are accounted for, regardless of how strongly it correlates with the raw response.
Scatter. The vertical spread is the residual variation that the focal predictor still has to explain. Tight scatter around the line means that predictor really is doing the work the model attributes to it; wide scatter means a lot is left unexplained.
Outliers. A point far from the cloud is a row whose adjusted y does not behave like the others. Added variable plots make these stand out far better than raw scatterplots because the partialling has removed the structure that was hiding them.
Curvature. A clear bend in the cloud says the partial relationship is not linear, even though lm() is forcing a straight line through it.

Let us build a small synthetic example that has a deliberate quadratic relationship and confirm that the AVP exposes it while the raw scatter does not.

RCurvature detection: AVP vs raw scatter

set.seed(2026) n <- 200 x1 <- runif(n, -2, 2) x2 <- runif(n, -2, 2) y <- 2 * x1 + x2^2 + rnorm(n, sd = 0.5) sim_df <- data.frame(y = y, x1 = x1, x2 = x2) model_curve <- lm(y ~ x1 + x2, data = sim_df) # Raw scatter of y against x2 (curvature is masked by x1's noise) op <- par(mfrow = c(1, 2), mar = c(4, 4, 2, 1)) plot(sim_df$x2, sim_df$y, pch = 19, col = "grey50", xlab = "x2", ylab = "y", main = "Raw scatter: y vs x2") abline(lm(y ~ x2, data = sim_df), col = "darkred", lwd = 2) # AVP for x2 (curvature is obvious) y_r2 <- resid(lm(y ~ x1, data = sim_df)) x_r2 <- resid(lm(x2 ~ x1, data = sim_df)) plot(x_r2, y_r2, pch = 19, col = "steelblue", xlab = "x2 | x1", ylab = "y | x1", main = "AVP: x2") abline(lm(y_r2 ~ x_r2), col = "darkred", lwd = 2) lines(lowess(x_r2, y_r2), col = "darkgreen", lwd = 2, lty = 2) par(op)

In the left panel, x2's quadratic structure is buried under the linear pull of x1. The fitted line looks fine and you would not suspect a missing term. In the right panel, the AVP for x2 shows a clear U-shape, and the dashed loess curve makes it unmistakable. That is the diagnostic value: a flat-looking residual cloud means the model is doing fine; a curved one tells you to add I(x2^2) (or a spline) to the formula.

Warning

A curved AVP is a misspecification flag, not a license to keep adding terms blindly. When you see curvature, the right move is to think about why that predictor's effect might bend, then refit with a transformation that has a substantive interpretation (square, log, spline). Stuffing a polynomial into every curved AVP is the diagnostic equivalent of adding more decimals to a wrong answer.

Try it: List the top-3 mtcars rows (by car name) with the largest absolute partial residual on the AVP for wt. Those rows are the cars whose adjusted mpg is least well-explained by adjusted wt.

RYour turn: top-3 residuals on the wt AVP

# Reuse partial_slope's residualization recipe for wt ex_yr <- resid(lm(mpg ~ hp + cyl, data = mtcars)) ex_xr <- resid(lm(wt ~ hp + cyl, data = mtcars)) ex_resid <- # your code here: residuals from lm(ex_yr ~ ex_xr) ex_top <- # your code here: rownames sorted by abs(ex_resid), top 3 ex_top #> Expected: 3 car names; typically extreme-mpg outliers like the Toyota Corolla or a Fiat

Click to reveal solution

RTop-3 AVP residuals solution

ex_yr <- resid(lm(mpg ~ hp + cyl, data = mtcars)) ex_xr <- resid(lm(wt ~ hp + cyl, data = mtcars)) ex_resid <- resid(lm(ex_yr ~ ex_xr)) ex_top <- rownames(mtcars)[order(-abs(ex_resid))][1:3] ex_top #> [1] "Toyota Corolla" "Fiat 128" "Chrysler Imperial"

Explanation: The cars at the top of the list have unusually high or low mpg even after accounting for their weight, horsepower, and cylinder count. They sit far from the line on the wt AVP because the model's linear story does not capture them well. Whether your top-3 ordering matches exactly depends on the random tie-breaking, but the same handful of high-leverage cars will dominate.

How is an added variable plot different from a partial residual plot?

These two diagnostics are easy to confuse because both involve "residuals" and both isolate one predictor. They answer different questions:

Plot	x-axis	y-axis	Best at revealing
Added variable plot	residuals of focal X on others	residuals of Y on others	Partial slope and influential observations
Partial residual plot (CR plot)	raw focal X	full residuals + $\hat{\beta}_k x_k$	Nonlinearity in the focal predictor's contribution

The AVP shows you what the coefficient is. The partial residual plot (also called a component-plus-residual or CR plot) shows you whether the shape of the relationship is linear. They complement each other: AVP for diagnostics about influence and slope; CR plot for diagnostics about functional form.

Key Insight

Use the AVP to audit the coefficient, the CR plot to audit the curve. The AVP residualizes the focal predictor on its rivals, which exposes leverage and influence; the CR plot keeps the raw predictor on the x-axis, which preserves the shape of any nonlinearity. A weird AVP says "look at this row of data"; a weird CR plot says "look at this functional form."

RAVP vs CR plot for one predictor

# AVP for hp (already familiar) y_avp <- resid(lm(mpg ~ wt + cyl, data = mtcars)) x_avp <- resid(lm(hp ~ wt + cyl, data = mtcars)) # Component + residual plot for hp b_hp <- coef(model_full)["hp"] cr_data <- data.frame(x = mtcars$hp, cr = resid(model_full) + b_hp * mtcars$hp) op <- par(mfrow = c(1, 2), mar = c(4, 4, 2, 1)) plot(x_avp, y_avp, pch = 19, col = "steelblue", xlab = "hp | others", ylab = "mpg | others", main = "Added variable plot: hp") abline(lm(y_avp ~ x_avp), col = "darkred", lwd = 2) plot(cr_data$x, cr_data$cr, pch = 19, col = "darkorange", xlab = "hp", ylab = "Component + residual", main = "CR plot: hp") abline(a = 0, b = b_hp, col = "darkred", lwd = 2) lines(lowess(cr_data$x, cr_data$cr), col = "darkgreen", lwd = 2, lty = 2) par(op)

The two plots share the same downward slope (that is the hp coefficient in both), but they differ in what is on the x-axis. The AVP uses a residualized hp, so the spread tells you about leverage. The CR plot uses the raw hp and overlays a loess curve, so the deviation between the green dashed loess and the straight red line is the test for nonlinearity. Reach for the AVP when you are auditing coefficients; reach for the CR plot when you are auditing functional form.

Try it: Compute the partial residual vector for hp and verify a lm(partial_residual ~ hp) slope still equals the hp coefficient from the full model.

RYour turn: CR slope sanity check

ex_pr <- # your code here: resid(model_full) + coef(model_full)["hp"] * mtcars$hp ex_slope_cr <- # your code here: slope from lm(ex_pr ~ mtcars$hp) c(cr_slope = ex_slope_cr, lm_hp = coef(model_full)["hp"]) #> Expected: identical numbers

Click to reveal solution

RCR slope solution

ex_pr <- resid(model_full) + coef(model_full)["hp"] * mtcars$hp ex_slope_cr <- coef(lm(ex_pr ~ mtcars$hp))[2] c(cr_slope = ex_slope_cr, lm_hp = coef(model_full)["hp"]) #> cr_slope.mtcars$hp lm_hp.hp #> -0.01804892 -0.01804892

Explanation: Adding $\hat{\beta}_k x_k$ back to the full residual gives a vector whose linear regression on $x_k$ recovers $\hat{\beta}_k$. CR plots and AVPs share the slope; their advantage is in what else they let you see.

How do you make publication-quality AVPs with ggplot2?

For papers, slides, or dashboards, ggplot2 gives you finer control over labels, ribbons, and rug plots. The recipe below produces a polished AVP for one predictor; loop it with lapply if you want a panel.

RPublication-quality AVP with ggplot2

library(ggplot2) # Reuse the residual pair for hp from earlier in the session y_r <- resid(lm(mpg ~ wt + cyl, data = mtcars)) x_r <- resid(lm(hp ~ wt + cyl, data = mtcars)) avp_df_gg <- data.frame( x = x_r, y = y_r, car = rownames(mtcars) ) ggplot(avp_df_gg, aes(x = x, y = y)) + geom_hline(yintercept = 0, colour = "grey70") + geom_vline(xintercept = 0, colour = "grey70") + geom_point(colour = "steelblue", size = 2.5, alpha = 0.8) + geom_smooth(method = "lm", se = TRUE, colour = "darkred", fill = "darkred", alpha = 0.15) + geom_rug(sides = "bl", colour = "grey50", alpha = 0.5) + labs( title = "Added Variable Plot: hp", subtitle = "Residual mpg vs residual hp, after removing wt and cyl", x = "hp | wt + cyl", y = "mpg | wt + cyl" ) + theme_minimal(base_size = 13)

The ggplot version adds three things the base plot does not: a confidence ribbon around the partial slope, reference axes at zero so you can see the centroid, and a marginal rug that shows where data actually lives. The story is the same as the base plot, but the figure is now ready to drop into a manuscript.

Tip

Label only the most influential points. Use ggrepel::geom_text_repel(data = subset(avp_df_gg, abs(y) > 3), aes(label = car)) to call out the cars with the biggest leftover residual instead of labelling all 32. Sparse labelling preserves the readability of the cloud.

Try it: Change the smoother from method = "lm" to method = "loess" and look at whether the partial relationship is still linear. A flat-ish loess line means linear is fine; a clear bend means consider a transformation.

RYour turn: swap lm for loess

ggplot(avp_df_gg, aes(x = x, y = y)) + geom_point(colour = "steelblue", size = 2.5, alpha = 0.8) + geom_smooth(method = # your code here, se = TRUE, colour = "darkred") + labs(title = "AVP for hp with loess smoother") + theme_minimal() #> Expected: a wavy curve close to the linear fit (no strong bend for hp)

Click to reveal solution

RLoess smoother solution

ggplot(avp_df_gg, aes(x = x, y = y)) + geom_point(colour = "steelblue", size = 2.5, alpha = 0.8) + geom_smooth(method = "loess", se = TRUE, colour = "darkred", fill = "darkred", alpha = 0.15) + labs(title = "AVP for hp with loess smoother") + theme_minimal() #> Curve hugs the linear fit closely, suggesting no nonlinearity to worry about for hp.

Explanation: When the loess curve and the linear fit roughly overlap, you have visual evidence that a straight line captures the partial relationship. A clear systematic gap is your cue to add a transformation or a spline term.

Practice Exercises

Exercise 1: AVP for Petal.Length on iris

Fit lm(Sepal.Length ~ Sepal.Width + Petal.Length + Petal.Width, data = iris). Build the added variable plot for Petal.Length from scratch (residualize on the other two predictors) and verify the slope of the residual scatter equals the lm() coefficient.

RExercise: AVP for Petal.Length

# Hint: residualize Sepal.Length on Sepal.Width + Petal.Width # Then residualize Petal.Length on Sepal.Width + Petal.Width # Compare the AVP slope to coef(model_iris)['Petal.Length'] # Write your code below:

Click to reveal solution

RAVP for Petal.Length solution

my_iris_model <- lm(Sepal.Length ~ Sepal.Width + Petal.Length + Petal.Width, data = iris) my_y <- resid(lm(Sepal.Length ~ Sepal.Width + Petal.Width, data = iris)) my_x <- resid(lm(Petal.Length ~ Sepal.Width + Petal.Width, data = iris)) my_slope <- coef(lm(my_y ~ my_x))[2] c(avp = my_slope, lm = coef(my_iris_model)["Petal.Length"]) #> avp.my_x lm.Petal.Length #> 0.7290835 0.7290835

Explanation: Same recipe, different dataset. Sepal length gains roughly 0.73 units for every extra unit of petal length, after sepal width and petal width are accounted for.

Exercise 2: Build a panel-data structure for any model

Write my_avp_panel(model) that takes any fitted lm() and returns a list with one entry per predictor. Each entry is a two-column data frame holding the residual pair (x_resid, y_resid). Apply it to the iris model from Exercise 1 and confirm the list has one entry per predictor.

RExercise: my_avp_panel

# Hint: loop over attr(terms(model), 'term.labels') # For each, residualize y and x on the OTHER predictors my_avp_panel <- function(model) { # Write your code below } my_iris_panel <- my_avp_panel(my_iris_model) length(my_iris_panel) names(my_iris_panel) #> Expected: 3 entries named after the three predictors

Click to reveal solution

Rmy_avp_panel solution

my_avp_panel <- function(model) { data_used <- model.frame(model) response <- names(data_used)[1] preds <- attr(terms(model), "term.labels") out <- lapply(preds, function(p) { others <- setdiff(preds, p) y_r <- resid(lm(reformulate(others, response = response), data = data_used)) x_r <- resid(lm(reformulate(others, response = p), data = data_used)) data.frame(x_resid = x_r, y_resid = y_r) }) setNames(out, preds) } my_iris_panel <- my_avp_panel(my_iris_model) length(my_iris_panel) #> [1] 3 names(my_iris_panel) #> [1] "Sepal.Width" "Petal.Length" "Petal.Width" head(my_iris_panel$Petal.Length, 3) #> x_resid y_resid #> 1 -0.1925000 -0.1304015 #> 2 -0.2175000 -0.3304015 #> 3 -0.3175000 -0.5054015

Explanation: The function reuses the FWL recipe inside a loop. The output is a tidy structure ready for either base plotting or lapply(..., function(d) ggplot(d, aes(x_resid, y_resid)) + ...).

Exercise 3: Detect curvature with an AVP

Simulate n = 300 rows of y = 2 * x1 + x2^2 + noise. Fit a misspecified linear model lm(y ~ x1 + x2). Build the AVP for x2 and use it to argue, both visually and numerically, that a quadratic term is needed. The numeric argument: refit with I(x2^2) and show the residual sum of squares drops sharply.

RExercise: detect curvature

set.seed(99) # Simulate the data, fit the wrong model, build the AVP for x2, # then compare RSS between the linear and quadratic versions. # Write your code below:

Click to reveal solution

RCurvature detection solution

set.seed(99) n <- 300 x1 <- rnorm(n) x2 <- rnorm(n) y <- 2 * x1 + x2^2 + rnorm(n, sd = 0.4) my_sim <- data.frame(y = y, x1 = x1, x2 = x2) my_lin <- lm(y ~ x1 + x2, data = my_sim) my_quad <- lm(y ~ x1 + x2 + I(x2^2), data = my_sim) # AVP for x2 (look for a U-shape) y_r <- resid(lm(y ~ x1, data = my_sim)) x_r <- resid(lm(x2 ~ x1, data = my_sim)) plot(x_r, y_r, pch = 19, col = "steelblue", xlab = "x2 | x1", ylab = "y | x1", main = "AVP: x2 (clear curvature)") lines(lowess(x_r, y_r), col = "darkgreen", lwd = 2) # Numeric argument: RSS drops dramatically with the quadratic term c(linear_RSS = sum(resid(my_lin)^2), quadratic_RSS = sum(resid(my_quad)^2)) #> linear_RSS quadratic_RSS #> 330.4727842 47.5926821

Explanation: The AVP for x2 shows a textbook U-shape, and the residual sum of squares falls by an order of magnitude when the squared term is added. Together they make a strong case for the quadratic specification. The AVP told you where to look; the RSS comparison confirmed the fix.

Complete Example

End-to-end on mtcars: fit a 4-predictor model, build all four AVPs by looping the FWL recipe, interpret what each plot says about its coefficient, and decide whether any predictor's relationship looks nonlinear enough to warrant a transformation.

REnd-to-end AVP workflow on mtcars

# 1. Fit the model model_4 <- lm(mpg ~ hp + wt + cyl + drat, data = mtcars) round(coef(model_4), 4) #> (Intercept) hp wt cyl drat #> 34.3796 -0.0218 -2.9821 -0.7401 1.0407 # 2. Build AVP residual pairs for every predictor preds_4 <- c("hp", "wt", "cyl", "drat") data_4 <- model.frame(model_4) others_for <- function(p) setdiff(preds_4, p) avp_pairs <- lapply(preds_4, function(p) { y_r <- resid(lm(reformulate(others_for(p), response = "mpg"), data = data_4)) x_r <- resid(lm(reformulate(others_for(p), response = p), data = data_4)) data.frame(x = x_r, y = y_r) }) names(avp_pairs) <- preds_4 # 3. Plot the 2x2 panel op <- par(mfrow = c(2, 2), mar = c(4, 4, 2, 1)) for (p in preds_4) { d <- avp_pairs[[p]] plot(d$x, d$y, pch = 19, col = "steelblue", xlab = paste(p, "| others"), ylab = "mpg | others", main = paste("AVP:", p)) abline(lm(y ~ x, data = d), col = "darkred", lwd = 2) lines(lowess(d$x, d$y), col = "darkgreen", lwd = 2, lty = 2) } par(op) # 4. Verify slopes equal coefficients (FWL identity check) slopes <- sapply(preds_4, function(p) coef(lm(y ~ x, data = avp_pairs[[p]]))[2]) data.frame(predictor = preds_4, avp_slope = round(slopes, 4), lm_coef = round(unname(coef(model_4)[preds_4]), 4)) #> predictor avp_slope lm_coef #> hp hp -0.0218 -0.0218 #> wt wt -2.9821 -2.9821 #> cyl cyl -0.7401 -0.7401 #> drat drat 1.0407 1.0407

Reading the panel, all four AVPs show roughly straight clouds, the loess curves track the red linear fits closely. None of the four predictors flags an obvious nonlinearity at this sample size. The slope-vs-coefficient table at the bottom confirms the FWL identity for every predictor, your visual diagnostics are anchored to the same numbers lm() reports. If one of those loess curves had bent dramatically, that would be your cue to add an I(x^2) term or a spline before trusting the linear coefficient.

Summary

Concept	Key takeaway
Definition	An AVP plots the residuals of `Y` (on other Xs) against the residuals of focal `X` (on other Xs).
Frisch-Waugh-Lovell	The OLS slope of those residuals equals the multiple-regression coefficient for the focal predictor.
Slope reading	Sign + magnitude reproduce the `lm()` coefficient exactly.
Scatter reading	Vertical spread = leftover variation; tight = focal predictor explains most of it.
Outliers	Stand out far better than in raw scatterplots because partialling removes confounding structure.
Curvature	A bent cloud says the linear fit is misspecified; consider a transformation or spline.
AVP vs CR plot	AVP audits coefficients and influence; partial residual (CR) plots audit functional form.
Production shortcut	`car::avPlots(model)` draws the panel for you (run locally in RStudio).

References

Fox, J. & Weisberg, S., An R Companion to Applied Regression, 3rd Edition. Sage (2019). Chapter on regression diagnostics.
car package documentation, avPlots() reference. Link
Lovell, M. C. (1963). Seasonal adjustment of economic time series and multiple regression analysis. Journal of the American Statistical Association, 58(304), 993-1010. (Origin of the FWL theorem in modern form.)
Belsley, D. A., Kuh, E., & Welsch, R. E., Regression Diagnostics: Identifying Influential Data and Sources of Collinearity. Wiley (1980).
Frisch, R. & Waugh, F. V. (1933). Partial Time Regressions as Compared with Individual Trends. Econometrica, 1(4), 387-401. Link
Fox, J. (1991). Regression Diagnostics: An Introduction. Sage University Paper.
Cook, R. D. (1996). Added-variable plots and curvature in linear regression. Technometrics, 38(3), 275-278.
